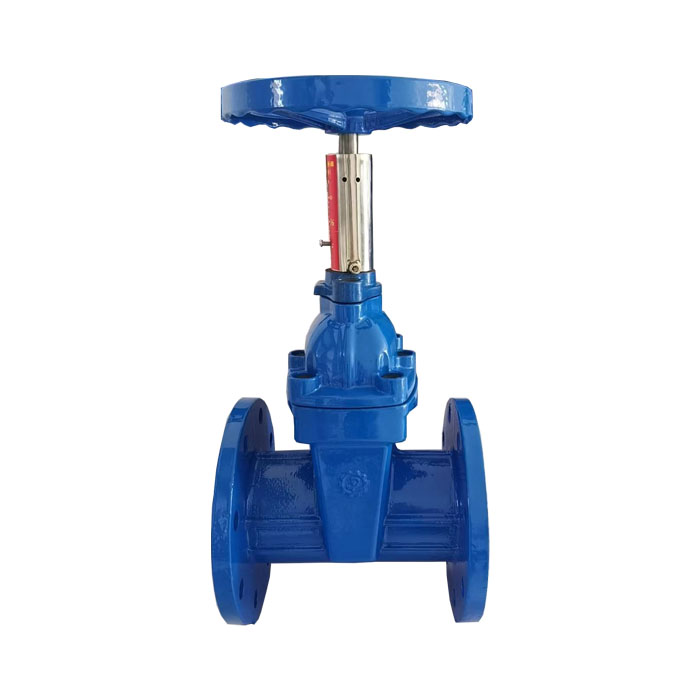

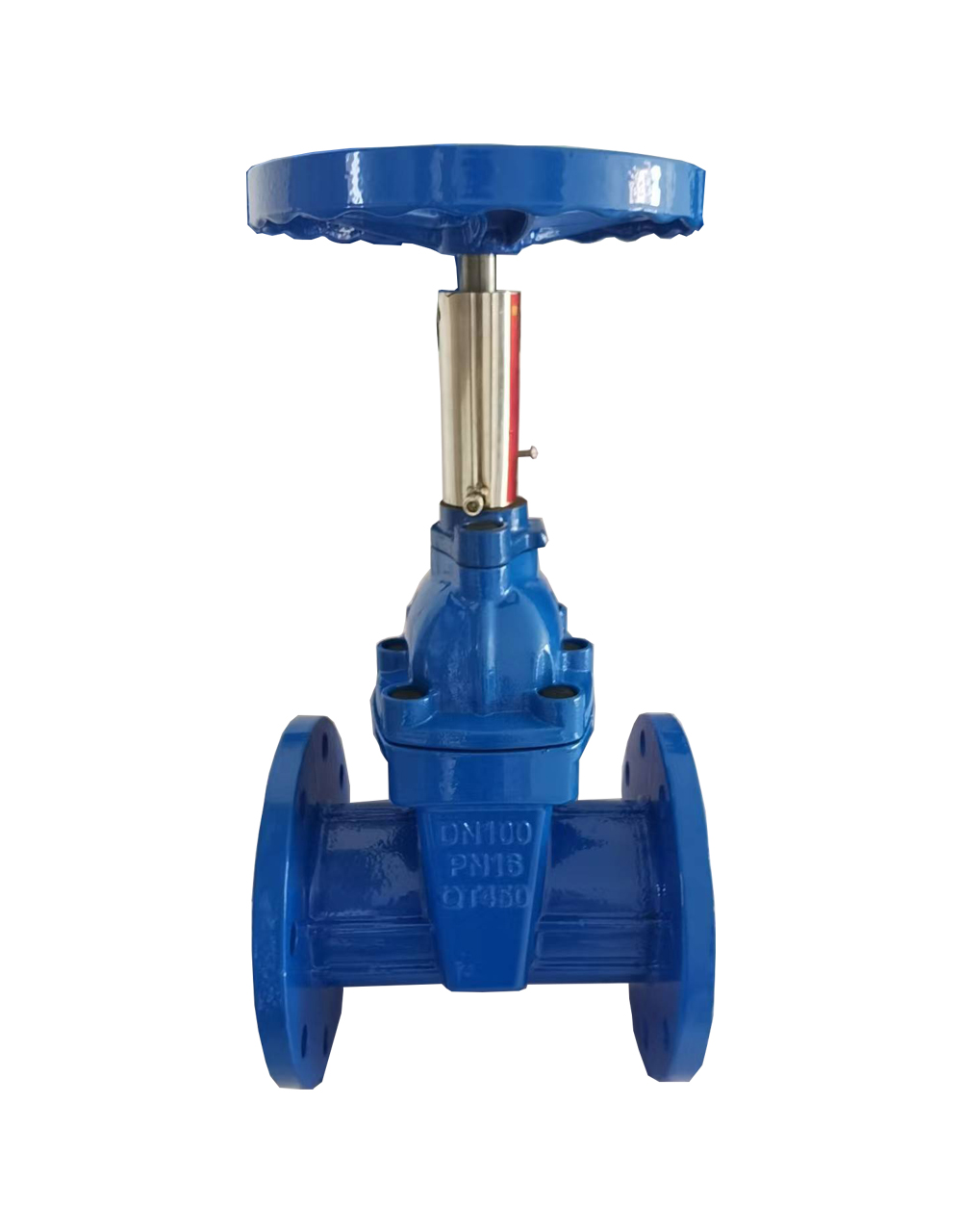

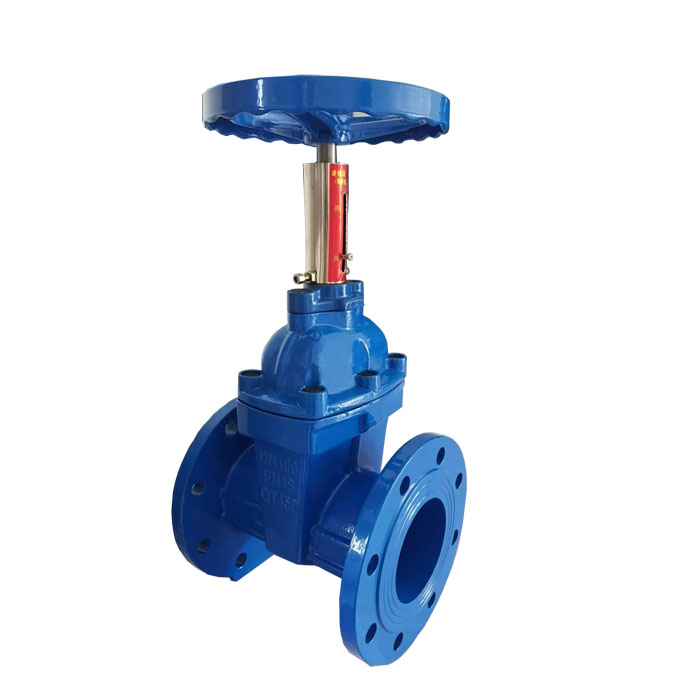

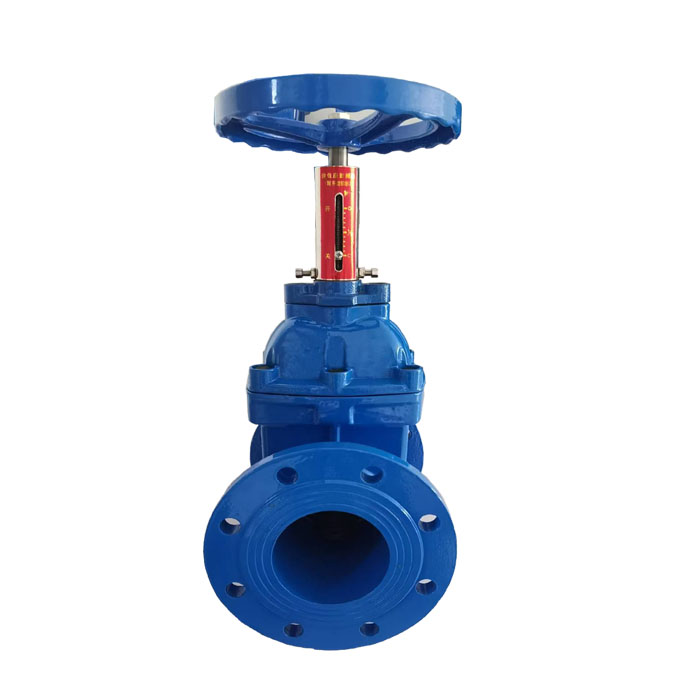

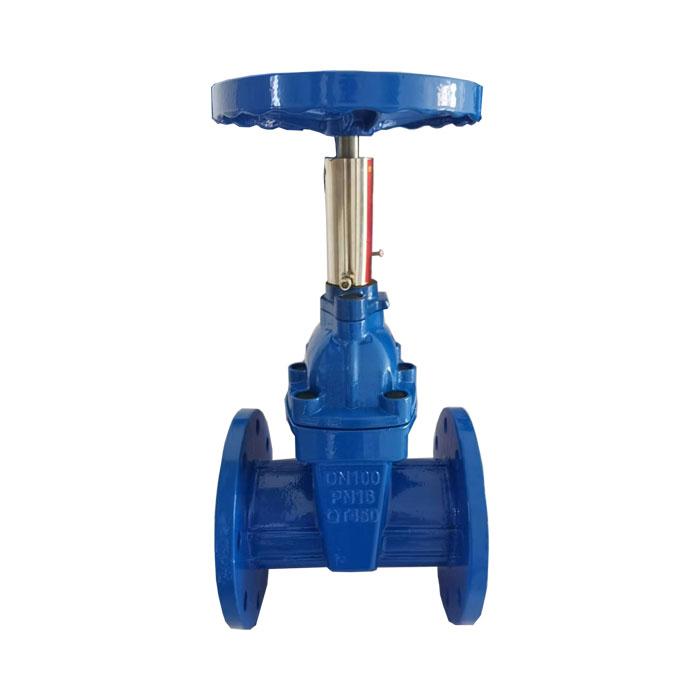

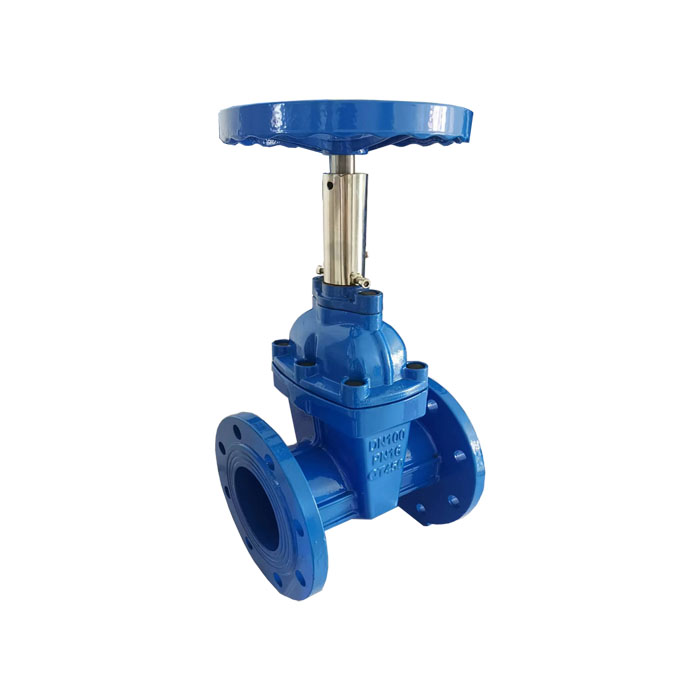

Attach open gate valve

 Product overview
The attached open gate valve is mainly used as a closed circuit device in the elimination system. It has the opening indicator, can intuitively understand the opening of the valve, with a travel switch, can realize the remote indicator valve switch status.

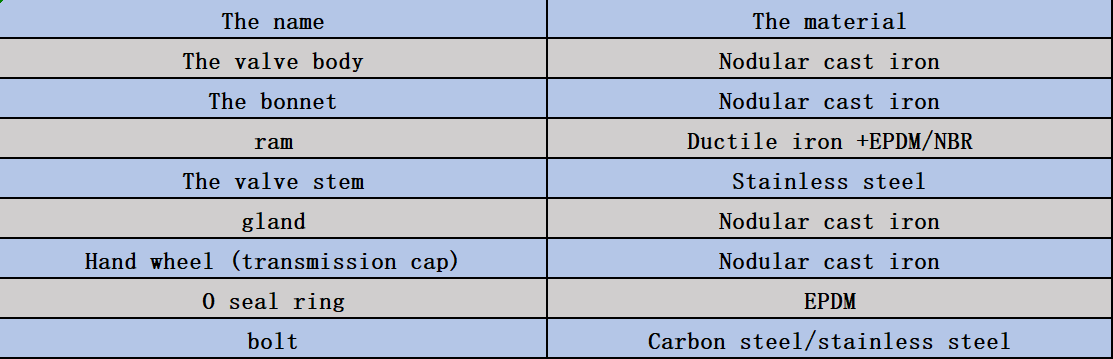

the main parts and components materials

the main technical parameters
Nominal pressure: 1.0 ~ 2.5MPa Operating temperature: 0 ~ 80℃
Nominal pass: 50 ~ 600mm applicable medium: water test standard: GB13927

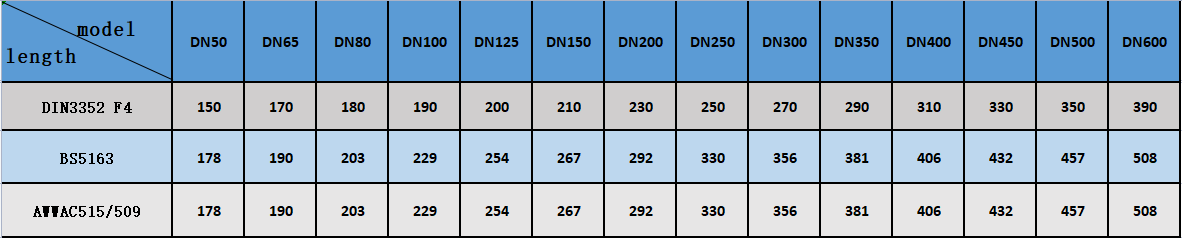

 product size
